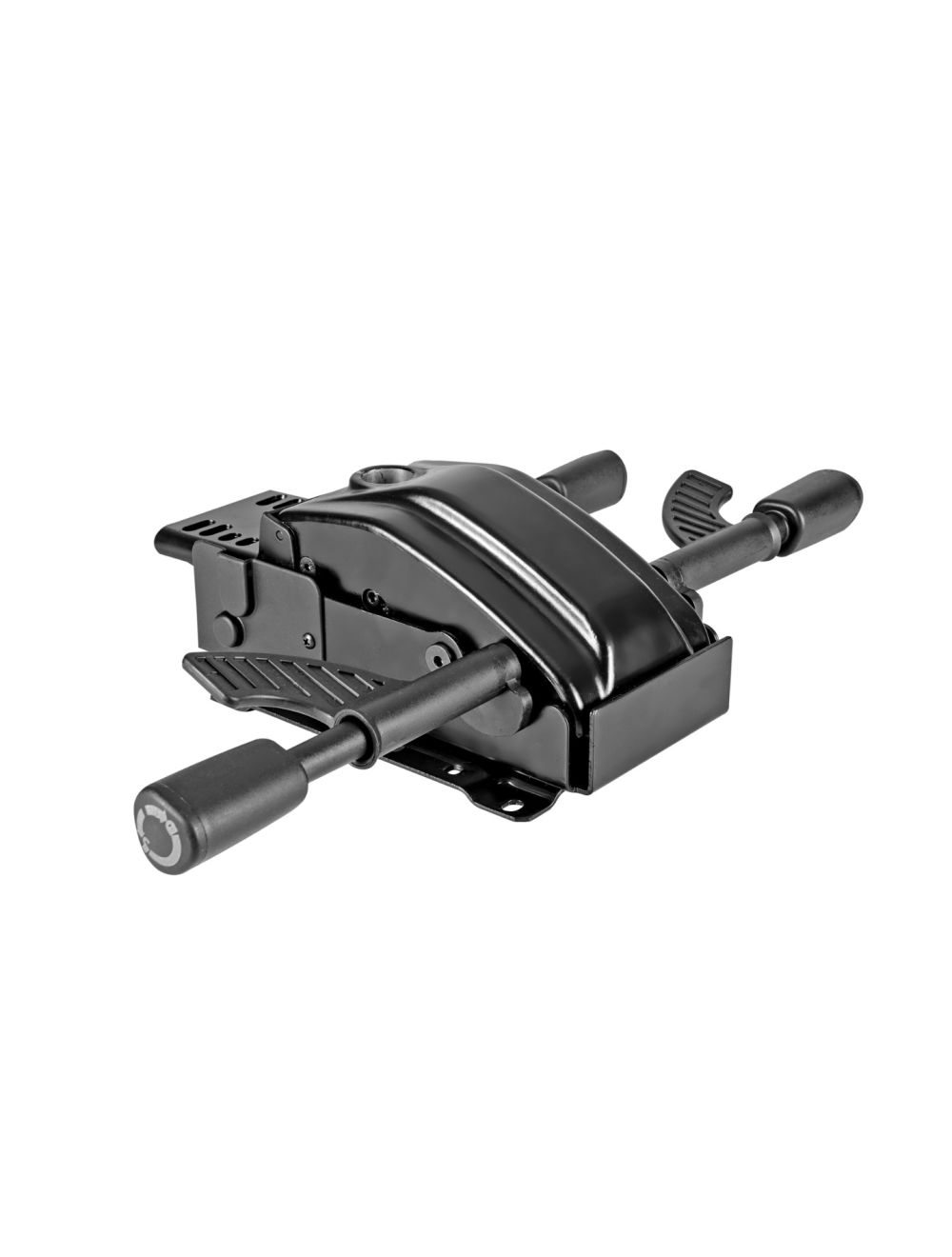

T718BQD Synchro Mechanism With Seat Slide

  • Synchronised mechanism which adjusts back and seat angles together at a 2:1 ratio
  • Seat height adjustment
  • Tilt tension, adjustable to user bodyweight with pull-out lever
  • Back/seat angle lockable in 3 positions
  • Independent seat angle adjustment to negative 5 degrees
  • Integral seat depth adjustment between 0-50mm to adjust to different leg lengths
  • Hole pattern to fix to seat - 156 x 200mm centre to centre
Product code

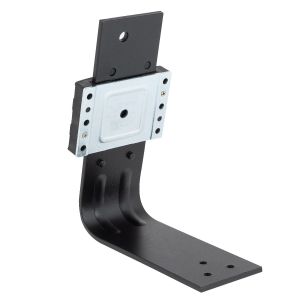

Compatible Products
